Specification
| Key Features | ||
| Data Rate | Up to 300Mbps (40MHz,Dynamic) Up to 144.4Mbps (20MHz,Dynamic) Up to 72.2Mbps (10MHz,Dynamic) Up to 36.1Mbps (5MHz, Dynamic) | |
| Antenna | 2×2 MIMO antenna | |
| Button | 1 Reset Button | |
| Frequency | 5.15~5.85GHz | |
| Wireless | Pharos MAXtream TDMA Technology Selectable Channel Width: 5/10/20/40MHz Auto Channel Selection Transmit Power Control Dynamic Frequency Selection(DFS) WDS Enable/Disable Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption SSID Broadcast Enable/Disable Multi-SSID with VLAN Tagging(AP Mode only) Distance/ACK Timeout Setting Wireless MAC Address Filter Wireless Advanced: Beacon Interval/RTS Threshold/Fragmentation Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia | |
| Interface | CPE610: 1 10/100Mbps Shielded Ethernet Port (LAN/POE) 1 Reset Button POE ADAPTER: 1 AC Jack with Earth Ground 1 10/100Mbps Shielded Ethernet Port (Power + Data) 1 10/100Mbps Shielded Ethernet Port (Data) | |
| Network Standard | IEEE 802.11a/n | |
| Encryption | Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption Security: SPI Firewall/ Ping Forbidden/DoS Protection | |
| Ports | CPE610: 1 10/100Mbps Shielded Ethernet Port (LAN/POE) POE ADAPTER: 1 10/100Mbps Shielded Ethernet Port (Power + Data) 1 10/100Mbps Shielded Ethernet Port (Data) | |
| Others | Efficiency: >84.29% | |
| Power Source | ||
| Power Mode | Passive Power over Ethernet via LAN (+4,5 pins; -7,8 pins) Voltage range: 16-27VDC 100-240VAC, 50/60Hz | |
| Physical Dimension | ||
| Dimension | CPE: 366 × 280 × 207 mm (14.4 × 11.0 × 8.1 in.) POE ADAPTER: 85.8×43.9×29.7 mm. | |
| Color | White | |
| Manufacturer Warranty | ||
| Warranty | 02 Year | |
Brief Description

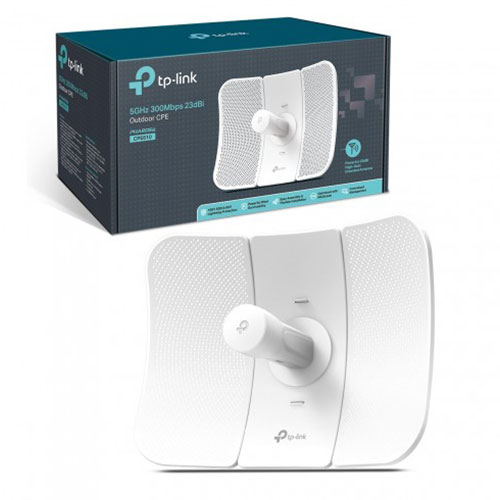

TP-Link CPE610 5GHz 300Mbps 23dBi Outdoor CPE Router
- Up to 300Mbps on 5GHz wireless data rates
- 23dBi high-gain directional 2×2 MIMO antenna and a dedicated metal reflector, ideal for long-distance application
- Excellent beam directivity, improved latency, and noise cancellation
- Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE610 stable even in strong winds
- A durable IP65 weatherproof enclosure along with 15 kV ESD and 6 kV lightning protection ensures all-weather suitability
- TP-Link Pharos MAXtream TDMA technology improves throughput, capacity, and latency performance
- Pharos Control gives administrators a free, centralized management system
- AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP) operation modes
- Passive PoE supports allow flexible deployment and convenient installation
Professional-standard 23dBi Directional Antenna for Long-range Wireless Transmission
With 23dBi high-gain directional 2×2 MIMO Cassegrain antenna and dedicated metal reflector, the CPE610 provides excellent beam directivity, improved latency and noise immunity. Professional performance, coupled with user-friendly design, makes the 5GHz 300Mbps 23dBi Outdoor CPE610 an ideal choice and cost effective solution for outdoor wireless networking applications.
Pharos Control – Centralized Management System
CPE610 comes equipped with Pharos Control centralized management software, helping users easily manage all devices in their network from a single PC. Functions include device discovery, status monitoring, firmware upgrading, and network maintenance. An intuitive web-based interface– PharOS - provides an alternative management method and allows professionals to access more detailed configurations.
What is the price of the TP-Link CPE610 5GHz 300Mbps 23dBi Outdoor CPE Router in Bangladesh?
The latest TP-Link CPE610 5GHz 300Mbps 23dBi Outdoor CPE Router in Bangladesh is 7,150 ৳. You can buy the TP-Link CPE610 5GHz 300Mbps 23dBi Outdoor CPE Router at the best price from our website or contact us.
Where to buy TP-Link CPE610 5GHz 300Mbps 23dBi Outdoor CPE Router in Bangladesh?
You can buy TP-Link CPE610 5GHz 300Mbps 23dBi Outdoor CPE Router from our online shop or in person at our showroom. Shop with confidence and take advantage when you buy from our online store.
