Specification
| Model | SPH 10000 TL3 BH-UP |
| Battery Voltage | 100-550V |
| Battery Type | Lithium/Lead-acid |
| Inverter Output | |
| Rated Power | 10,000VA/10,000W |
| Parallel Capability | No |
| AC Voltage Regulation (Battery Mode) | 230V/400V (310~476V) 50Hz/60Hz (45Hz-55Hz/55Hz-65Hz) |
| Max. AC apparent power | 10000VA |
| Efficiency (Peak) | 98.2% |
| Waveform | Pure Sine Wave |
| Switch time | >10ms |
| Solar Charger | |
| Maximum PV Array Power | 15000W |
| MPPT Range @ Operating Voltage | 120V-1000V/600V |
| Number of MPP Tracker | 2 |
| Start voltage | 120V |
| Maximum Solar Charge Current | 25A |
| AC Charger | |
| Charge Current | 15.2A |
| AC Input Voltage | 230VAC |
| Nominal AC output voltage | 230V/400V |
| Frequency Range | 50Hz/60Hz (Auto sensing) |
| Physical | |
| Protection Degree | IP65 |
| Dimension (W/H/D) | 505/453/198mm |
| Net Weight | 30kg |
| Operating Environment | |
| Relative humidity | 0~100% |
| Altitude | 3000m |
| Operating Temperature | –25°C - +60°C |
| Storage Temperature | -15°C - +60°C. |
Brief Description

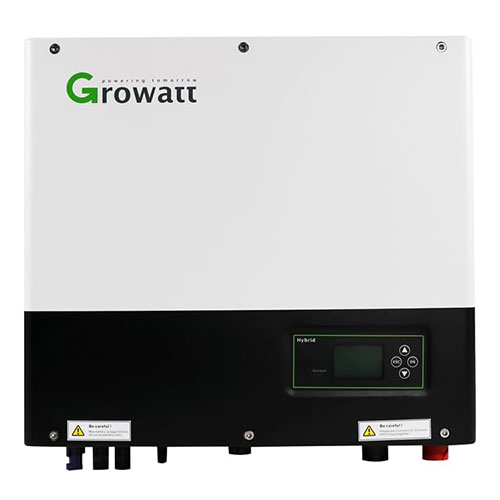

Growatt 10kW Three Phase MPPT SPH Solar Hybrid Inverter
The Growatt SPH TL3 BH-UP is a remarkable series of three-phase residential hybrid inverters designed to deliver high yields through its impressive features. With a DC/AC ratio of up to 1.5, dual MPP trackers, and 97.5% efficiency, this inverter sets a new standard for performance. Its passive cooling system reduces moving parts, ensuring exceptional reliability. Moreover, it provides backup power supply during grid outages, making it a versatile and dependable choice for residential needs. Additionally, it seamlessly integrates with the ARK High Voltage System, enhancing its versatility and compatibility.
Key Features
- Maximum European efficiency of 97.5%
- Dual MPP trackers
- 1.5 DC/AC Ratio
- UPS function, 10ms transition
- 100% three-phase imbalance output
- Smart phase-level power export limitation
- Wide battery voltage 100-550V
- Supports lithium & lead-acid batteries
- Scalable system configuration
- VPP interface ready
- Type II SPD on AC and DC side
- IP65 Protection
What is the price of Original Growatt 10kW Three Phase MPPT SPH Solar Hybrid Inverter in Bangladesh?
The latest price of Original Growatt 10kW Three Phase MPPT Solar Hybrid Inverter SPH 10000 TL3 BH-UP in Bangladesh is 375,000৳. You can buy the Original Growatt 10kW Three Phase MPPT Solar Hybrid Inverter SPH 10000 TL3 BH-UP Online in Bangladesh at the best price from our techxzon.com and get home or office delivery within 2-7days.
Where to buy Original Growatt 10kW 3Phase MPPT Solar Hybrid Inverter SPH 10000 TL3 BH-UP in Bangladesh?
You can buy Original Growatt 10kW 3-Phase MPPT Solar Hybrid Inverter SPH 10000 TL3 BH-UP from our online shop or in person at our showroom. Please shop confidently and take advantage when buying from our online store.
