Specification
| Basic Information | ||
| Supported CPU | Support for 9th and 8th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package L3 cache varies with CPU | |
| Chipset | Intel H310 Express Chipset | |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | Micro ATX Form Factor; 22.6cm x 18.5cm | |
| Audio | Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 2 x PCI Express x1 slots (The PCI Express x1 slots conform to PCI Express 2.0 standard.) | |
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) | |
| Memory | ||
| Type | DDR4 | |
| Slots | 2 x DIMM sockets | |
| Supported Memory | Support for DDR4 2666/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules * To support 2666 MHz or XMP memory, you must install an 8th Generation Intel Core i7/i5 processor. | |
| Maximum Memory | 32 GB | |
| Graphics | ||
| Graphics | 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.2. | |
| Max Shared Memory | 1 GB | |
| Connector & Ports | ||
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz Support for HDMI 1.4 version and HDCP 2.2. | |
| D-Sub (s) | 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz | |
| DVI-D (s) | 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz The DVI-D port does not support D-Sub connection by adapter. | |
| USB (s) | 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) | |
| LAN Port (s) | Realtek GbE LAN chip (10/100/1000 Mbit) | |
| Supported Storage | 4 x SATA 6Gb/s connectors | |
| Audio | Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.1 Gen 1 header 1 x USB 2.0/1.1 header 1 x Clear CMOS jumper | |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) | |
| Others | ||
| Special Features | Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD @BIOS AutoGreen Cloud Station EasyTune Fast Boot Game Boost ON/OFF Charge Platform Power Management Smart Backup Smart Keyboard Smart TimeLock Smart HUD System Information Viewer USB Blocker V-Tuner Support for Q-Flash Support for Xpress Install | |
| Bundled Software | Norton Internet Security (OEM version) | |
| Warranty Information | ||
| Manufacturing Warranty | 03 Years | |
Brief Description

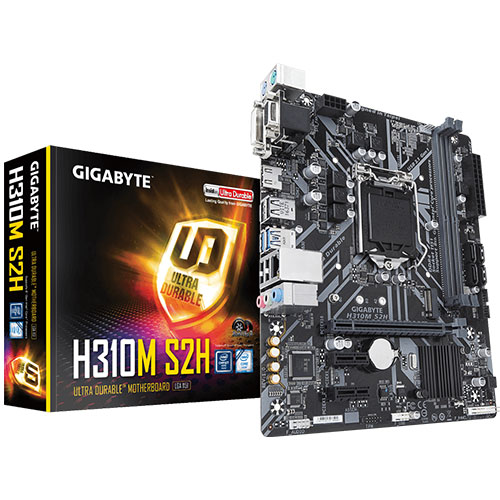

Gigabyte H310M S2H 9th Gen Micro ATX Motherboard
Realtek 8118 LAN optimizes network for gaming with automatic bandwidth allocation, ensuring highest priority and fastest Internet experience. GIGABYTE Motherboards focus on delivering M.2 technology to enhance system potential. Smart Fan 5 ensures performance and coolness by allowing fan headers interchange.
Introduced Smart Fan 5 with hybrid fan headers to support PWM and Voltage mode fans. Achieve fan silence by stopping any fan when temperature drops. Customize which fan stops, based on sensor readings and temperature.
What is the price of the Gigabyte H310M S2H 9th Gen Micro ATX Motherboard in Bangladesh?
The latest Gigabyte H310M S2H 9th Gen Micro ATX Motherboard in Bangladesh is 7,000৳. You can buy the Gigabyte H110M-DS2 DDR4 6Th / 7Th Gen Motherboard at the best price from our website or visit our showroom.
Where to buy Gigabyte H310M S2H 9th Gen Micro ATX Motherboard in Bangladesh?
You can buy a Gigabyte H310M S2H 9th Gen Micro ATX Motherboard from our online shop or in person at our showroom. Shop with confidence and take advantage when you buy from our online store.
