Specification

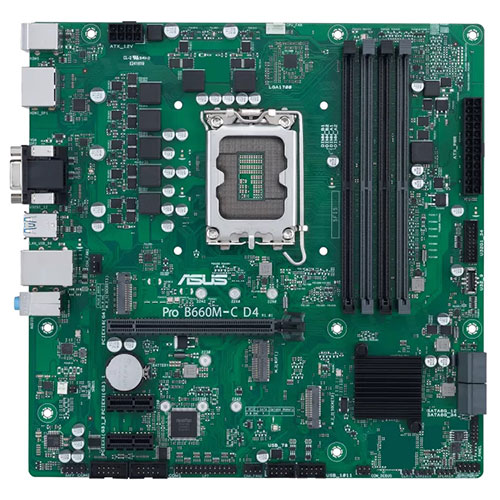

| Model | Pro B660M-C D4-CSM |
| CPU | Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU type. |
| Chipset | Intel® B660 Chipset |
| Memory | 4 x DIMM, Max. 128 GB, DDR4 5000(OC) /4800(OC) /4600(OC) /4400(OC)/4266(OC) /4000(OC) /3733(OC) /3600(OC) /3466(OC) /3400(OC) /3333(OC) /3200 /3000 /2933 /2800 /2666 /2400 /2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) Optimem *Actual Memory data rate support depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Graphics | 2 x DisplayPort** 1 x D-Sub port 1 x HDMI® port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. |
| Expansion Slots | Intel® 12th Gen Processors 1 x PCIe 4.0/3.0 x16 slot Intel® B660 Chipset 2 x PCIe 3.0 x1 slots |
| Storage | Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel® 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Intel® 12th Gen processors support PCIe 4.0 x4 mode Intel® B660 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots. |
| Ethernet | 1 x Intel® 1Gb Ethernet ASUS LANGuard |
| USB | Rear USB (Total 4 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (suppports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback " * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Back Panel I/O Ports | 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 2 x DisplayPort 1 x HDMI® port 1 x D-Sub port 1 x Intel® 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 keyboard (purple) port 1 x PS/2 mouse (green) por |
| Internal I/O Connectors | Fan and cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (suppports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrude header 2 x COM Port headers 1 x Front Panel Audio header (AAFP) 1 x COM debug header 1 x LPT header 1 x Mono-out header(with Amp IC) 1 x M.2 slot (Key E) 1 x SMBUS header 1 x Speaker header 1 x 10-1 pin System Panel header |
| Special Features | ASUS EZ DIY - Box Headers Bespoke Motherboard Design & Business Focused Features - Q-LED Core - ASUS Self Recovering BIOS - ASUS Event Log - ASUS Commercial BIOS kit - Anti-Moisture - 24/7 Reliability - Overcurrent Protection TPM IC onboard |
| Software Features | ASUS Exclusive Software IT Management software supported - ASUS Control Center Express(ACCE) |
| BIOS | 128Mb Flash ROM |
| Manageability | WOL by PME, PXE |

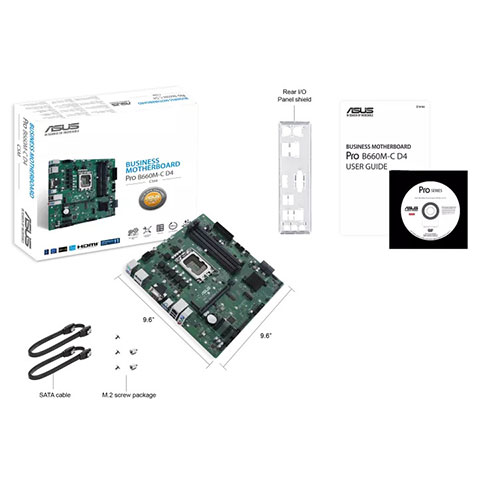

| Accessories | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 SSD screw package 1 x M.2 Key E screw package Installation Media 1 x Support DVD Documentation 1 x ACC Express Activation Key Card 1 x User guide |
| Operating System | Windows® 11, Windows® 10 64-bit |
| Form Factor | microATX 24.4 cm x 24.4 cm |
| Warranty | 3 Years Replacement |
Brief Description
Micro-ATX B660 business motherboard with enhanced security, reliability, manageability and serviceability
Intel® LGA 1700 socket: Ready for 12th Gen Intel CoreTM processors
ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
Enhanced system security: A self-recovering BIOS and TPM to safeguard PCs
Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments
Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance
Better serviceability: Q-LED diagnostic display and COM debug header to facilitate building and support processes
Pro
ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.
ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.
ASUS Control Center Express
ASUS Control Center Express is a real-time IT monitoring and management tool designed for business that improves productivity and enhances security, helping prevent unauthorized access and data leaks. The intuitive dashboard enables easy, real-time hardware and software management across your organization. Purchase of a Pro motherboard entitles you to a copy of Control Center Express
Optimize IT endpoint management
Designed to assist IT staff in monitoring and controlling devices within their corporate networks, and facilitate inventory checking in multiple locations remotely
Automate IT maintenance
Allows IT staff to schedule automatic updates of the latest BIOS, software and utilities to specific or all devices at off-peak times, enhancing system stability and IT operational flexibility
Securely manage all of endpoints
Securely manage endpoint configuration, portable storage access and PC software applications by enabling them to create grouping rules on individual devices
Internationally Certified Business Motherboard
ASUS Business motherboards are enterprise proven with leading quality that exceeds industry standards. Certified by multiple international safety and environmental organizations, ASUS Business motherboards provide a safe, secure and sustainable solution, making them the ideal choice for your business.
This business motherboard is specially designed for 12th Gen Intel® Core™ processors and offer PCIe® 4.0 connectivity for storage devices and graphics cards. Wide bandwidth and superfast transmission speeds empower you to create feature-rich builds that deliver optimal performance wherever it’s needed.
ASUS Self-recovering BIOS
ASUS-exclusive BIOS protection technology automatically recovers the system BIOS with a verified backup in the event of an update failure, preventing the need to replace or reinstall hardware.
Trusted Platform Module(TPM)
Hardware-based security offers better data protection, enhances network security, protects digital identities and ensures platform integrity.
Certified NIST SP 800-147
ASUS Business motherboard is certified by the national computer security standards.
ASUS Secure Boot
ASUS business motherboard is set to check the firmware and signature of each piece of boot software.
ASUS Self-recovering BIOS
With ASUS Self-recovering BIOS
The user simply needs to reboot the system and ASUS Self-recovering BIOS will restore the latest BIOS update.
With ASUS Self-recovering BIOS
Ensures safe BIOS updates
Reduces maintenance frequency and costs
Requires no extra software
Provides automatic update failure detection and recovery
The user must go through the following steps to reinstall the BIOS update:
The standard process for BIOS update crash recovery
ASUS RELIANT
Ensures consistent performance with the finest components and rigorous reliability testing
Anti-moisture coating
Anti-sulfur resistors
Stanless-steel Back I/O
Protection against moisture and corrosion
An innovative moisture-resistant coating protects the motherboard in humid environments, such as factories, libraries, data centers and internet cafes. It also minimizes internal corrosion by preventing adhesion and migration of moisture, prolonging the life of the motherboard.
ASUS Commercial BIOS Kit
ASUS understands how important a customized product impacts users' mind share, experience the brand-new Commercial BIOS Kit for a partial BIOS update solution!
BIOS Value Edit Tool BIOS Value Edit Tool Customize the BIOS options BIOS Boot Logo Tool. Brand your builds with a customized boot logo OEM Activation (OA) Tools OEM Activation (OA) Tools Add or remove the OEM Activation key Desktop Management Interface (DMI) Desktop Management Interface (DMI) Easily add customer information, such as company name, to the BIOSIntel® Management Engine (Intel® ME) Driver Intel® Management Engine (Intel® ME) Driver Update the Management Engine without flashing the whole BIOS * Please contact with local FAE for commercial BIOS kit.
Remote IT Management
The onboard SMBUS header* connects to a DASH LAN card for remote IT management. DASH is a desktop and mobile architecture system hardware that allows the motherboard to be managed via the network.
Remote IT Management
* ASUS DASH LAN card sold separately. For more information, please contact your local ASUS sales representative.
ASUS SERVICEABILITY
Facilitate the assembly process and enable efficient troubleshooting
What is the price of the ASUS PRO B660M-C D4-CSM Micro-ATX Motherboard in Bangladesh?
The latest ASUS PRO B660M-C D4-CSM Micro-ATX Motherboard in Bangladesh is 15,300৳. You can buy the ASUS PRO B660M-C D4-CSM Micro-ATX Motherboard at the best price from our website or visit our showroom.
Where to buy ASUS PRO B660M-C D4-CSM Micro-ATX Motherboard in Bangladesh?
You can buy ASUS PRO B660M-C D4-CSM Micro-ATX Motherboard from our online shop or in person at our showroom. Shop with confidence and take advantage when you buy from our online store.
